Intro to PEX Plumbing

As an Amazon Associate we earn from qualifying purchases (more).

I’m no plumber. So, when my dad asked me to hook up their toilet and sink in their cabin, I said “sure, it’s easy to be a plumber.” After all, you only need to know two things – hot water valves go on the left and poop flows downhill, right?! But when you’re using PEX, it’s even easier than that, or so I thought.

What the Heck is PEX?

pex gear
Prepare for expensive PEX accessories

Why it’s cross-linked, high density polyethylene, that’s what it is. PEX stands for peroxide Engel cross linking. But enough with the technical mumbo-jumbo. While not of the same chemical basis, it’s pretty much a very flexible and resilient version of PVC piping. PEX’s flexibility results in plumbing runs with fewer connections, which in theory makes for a job less prone to leaks and other issues. It also makes installation a lot easier than its more rigid copper sibling.

My PEX Adventure

My parents have an unfinished cabin they’ve been working on for what seems like an eternity. It’s kind of tough to drive from Florida to North Carolina and bring your tools, materials and everything else you need to camp out, so you can see why it’s been such a long endeavor. The exterior shell is finished, the roof is on and all of the rough electric and plumbing is in place, so it’s getting close to being done. As of right now, there’s a toilet, shower and sink in place, but it’s not hooked up to anything. That’s where I come into the scene – Mr. Amateur Plumber. Keep the “ameteur” in mind when you’re reading this article.

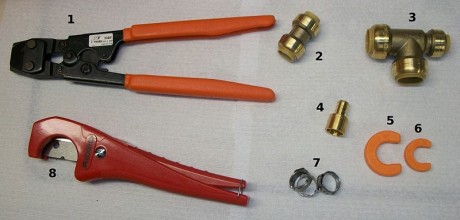

Cutters, Crimpers and Connectors Courtesy of Wikipedia.com
Cutters, Crimpers and Connectors Courtesy of Wikipedia.com

I was pleased to see that all of the water supply pipes were PEX. This not only made my job easier, but it scored some serious brownie points with my parents once I got everything hooked up. The only issue that I ran into was the cost of the supplies. What a shock when I found out that the simple PEX connection clamping tool was a $50 item.

Cutting the PEX

Here’s another kick in the butt, when I found out that I also needed a specialty cutting tool that was around $50, I laughed and put that back on the shelf. I have a hand saw that would cut through that stuff like butter. Or, so I thought. I wish I would have bought it to save myself the headache of cutting it by hand. If I had to describe the cutting process (which I do by the way), it was a lot like trying to cut a wet noodle with a banana. This stuff is so flexible I had to really get a good grip on the material to make the cut. That meant I needed to get my hand a little closer than I would have liked to the hand saw.

PEX TIP #1: Be sure you get a cutting tool as well as a PEX clamping tool, or you’re going to have a difficult time making a good, clean cut.

Installing the Valves

pex fitting
A typical PEX fitting

After I cut the caps off of the PEX pipe fittings, I needed to hook up the shut off valves for the sink and toilet fittings. This part of the process was pretty simple and straight-forward. Just jam the tip of the valve into the PEX and compress the clamp over the valve. For some reason, every time I put the valve into the PEX, I forgot to put the compression ring in place first. So I had to pull out the valve, slip a compression ring on the PEX and then reinsert the valve into the PEX.

PEX Tip #2: Don’t put the cart before the horse. Try not to forget to put the compression ring onto the PEX first!

Compression Rings

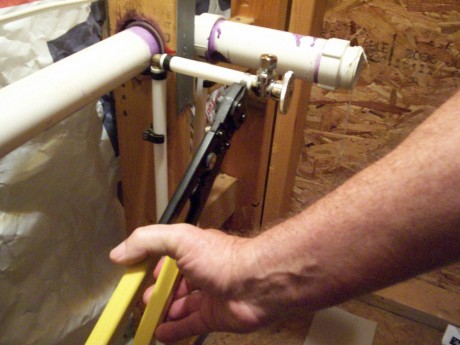

Crimp Master and Hand Model Ed Brennan
Crimp Master and Hand Model Ed Brennan

This part of the process seemed pretty weird to me. How does that little ring hold back 200 psi of pressurized water? It just seemed like it wasn’t going to work and I was really skeptical, but I thought I’d give it a whirl. The tip of the compression tool fits snugly onto the edge of the compression ring’s teat. Once that’s in place, you just squeeze the handles and it’s all done. Or, so I thought (again).

Trying to hold the ring, the tool and exert an enormous amount of pressure on the fitting is a trick I have yet to master. I ended up using a little tape to hold the ring in place while I squeezed the handles with enough force to crush walnuts with my bare hands.

PEX Tip #3: Having someone hold the compression ring or using a little tape helps make the job go a little more smoothly!

All in all, it was pretty easy once I worked out all of the kinks. Water flows without a leak and the toilet flushes like a champ. Yay PEX!

Buy Now - via PexUniverse.com


Buy Now - via Home Depot

Photo of author

About Eric

Since Eric built his first skateboard ramp in his parents driveway; he’s breathed, slept and eaten DIY construction. As a second generation master carpenter who runs two Florida-based construction firms, Eric’s had the chance to work on everything from Mcmansions to your local mall to the cat lady’s bathroom. So when it comes to dealing with construction s@#t; he’s the man—literally. There isn’t a tool or construction material that Eric hasn’t used and abused, and if there is; it’s rocking in a dark corner nervously waiting for him to show up for work.

Subscribe to our newsletter

Get access to free prizes, product sneak-peeks, reviews, how-to's and much more!

More Info | Email Privacy

2 thoughts on “Intro to PEX Plumbing”

  1. I love pex piping. Cut to length, insert fitting and crimp. What could be easier. Tools may be expensive but it doesn’t take many for this kind of piping. Fittings are reasonable so this is a great way to go.

    Reply
  2. Pex piping is amazing stuff and very easy to work with and extremely durable. You can let water freeze in pex pipe and it won’t damage it, at least with the Wirsbo brand.
    But there are a few things you missed. There are 3 types of pex, type A, B, and C. Type A is Uponor brand(Wirsbo), type B is the stuff you see in retail stores like Home Depot and Menards, and type C is newer but has a poor cross link bond and you probably won’t see it in stores. Type A is what pros use and utilizes a pex ring and expander tool that makes perfect leak free joints. Type A isn’t available in retail stores, only wholesale supply houses and the expander tool is either hand operated or cordless electric(expensive). Type B is the DIY or handyman choice because of price. It utilizes a copper ring and crimp tool. Although the crimp tool might have seemed expensive to you, the expander tool for type A is much more expensive. My house was done with Pex A and I feel it is far superior. Also, as far as fittings go, the other type not mentioned yet is the Sharkbite style that has an internal lock ring and o-ring. These actually work great, although they are also expensive. The Sharkbite style fitting will work with type A or B pipe, but expander style fittings(wirsbo) only work with type A pipe and crimp style fittings only work with type B pipe.
    Hope this helps anyone wanting more info on Pex plumbing.
