Ridgid GEN5X Folding Panel Light Review – The Story Unfolds

As an Amazon Associate we earn from qualifying purchases (more).

ridgid gen5x folding panel light

For pros and avid DIYers alike, it’s generally considered desirable to be able to see what the hell you’re doing. Being a mature, experienced individual – in other words, an old fart – my eyesight isn’t what it was a decade or so ago. I need all the help I can get in lighting up my work area, and until recently, that has primarily meant halogen. Which is a huge improvement over the oil-soaked rags we used when I started framing…With continuous improvements in LED technology, all the big boys in the tool world are adding job site lighting to their arsenals. Ridgid is no exception, and they recently sent three of their newest bright ideas for HomeFixated to evaluate. In this post, we’ll illuminate you on the Ridgid GEN5X Folding Panel Light. In the near future, we’ll fire up the Ridgid Light Cannon (gotta love the name!) and the Ridgid Floodlight.

Halogen lights do a great job lighting up the work site. They’re bright, relatively inexpensive, and available in numerous configurations. On the darker side, they require AC power, they can be very touchy, and they generate a LOT of heat when they’re on (which is when they’re most useful). The Ridgid GEN5X Folding Panel Light (Model R8694221B) on the other hand, runs off any Ridgid 18V battery, is ruggedly built, and is cool enough that you can place your hand flat on the panel. Doing that with a halogen light will earn you a trip to the burn unit. With maybe a quick stopover at the psych ward.

ridgid gen5x folding panel light

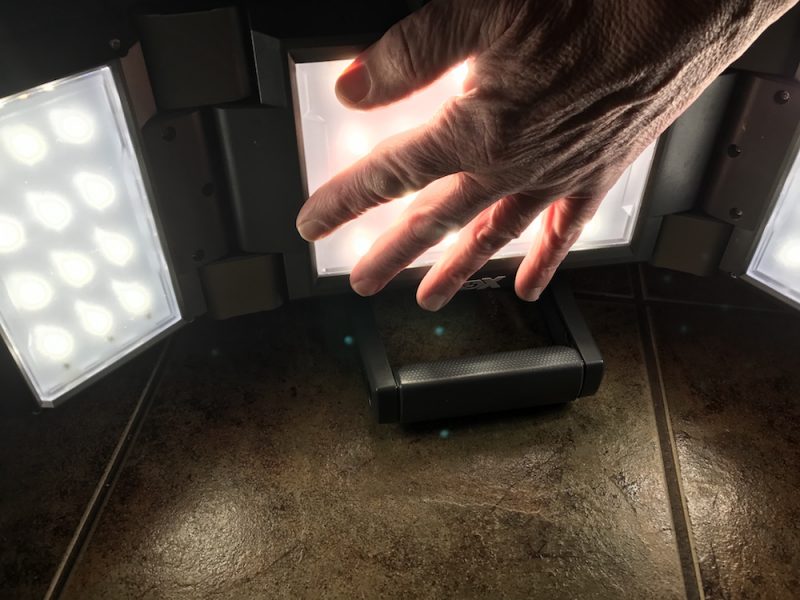

If you try this with halogen, have the burn salve ready…

Here is the list of features and specs from Ridgid:

• Folding panel design – Panels fold outward for 360 degree light output and fold inward for protection when not in use
• Hybrid technology – Powers light with any RIDGID 18-Volt battery or extension cord
• Extended run-time – Up to 14 hours of continuous run-time with variable light power dial
• Up to 2,500 Lumens with variable power dial – Powerful lumen output with the ability to set at variable lumen levels to match the brightness with the job
• On board tripod mount – Easily mount the unit to the RIDGID universal tripod
• Temperature control – Electronics protect LED from overheating and keep the light cool to touch
• Rugged design – Durable, lightweight material designed to withstand tough jobsite conditions


Depth: 10.5 in.
Height: 10.75 in.
Width: 7.88 in.
Weight: 3 lbs.
Power: Hybrid

Bend Me, Shape Me, Hybridize Me

The clever design of the Ridgid GEN5X Folding Panel Light uses one large and two smaller light panels. The two smaller panels fold across the front of the larger panel when the light’s not being used. In addition to protecting the light panels, this reduces the amount of storage space the light requires to a cube roughly 10”x10”x7”.

Ridgid GEN5X Folding Panel Light

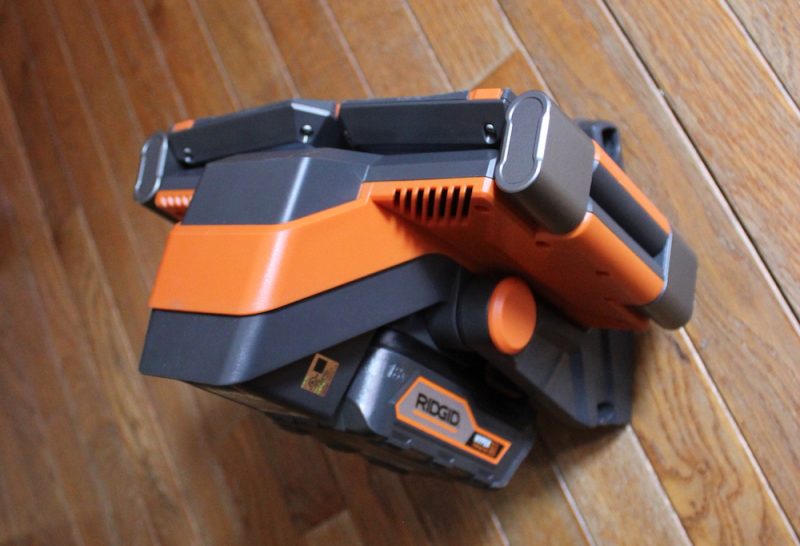

The Ridgid GEN5X Folding Panel Light folds nicely for storage.

When it’s time to light up your world, the small panels unfold. They can stay in any position from focusing slightly inward to swinging way ‘round the back, essentially giving you a 360° triangle of light. When set on its base the light is very stable. It swivels from a slightly downward angle to a bit beyond fully upward, roughly 180° in total.

Ridgid GEN5X Folding Panel Light

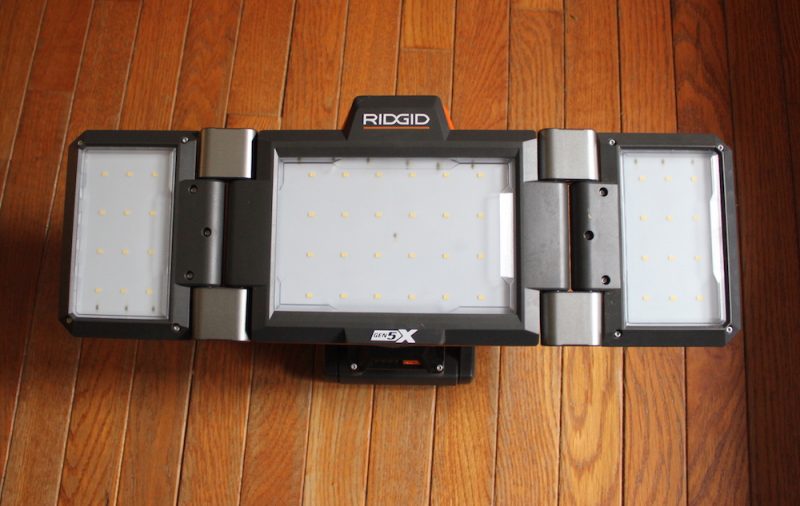

The LED panels can light up the ceiling…
Ridgid GEN5X Folding Panel Light

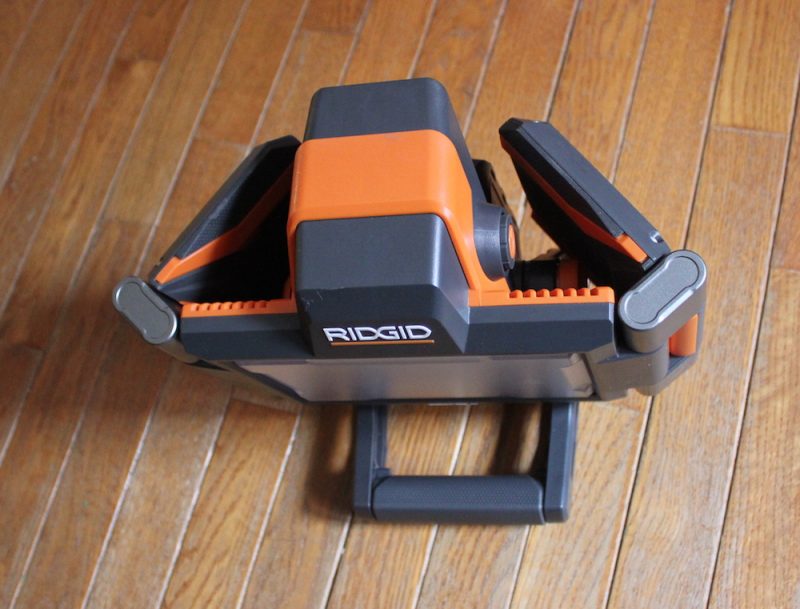

Or a nice triangular circle around you.

A pushbutton near the top of the light powers it on and off. Rather than the traditional HIGH/LOW/OFF settings, a ring around the outside of the power button lets you dial in the exact amount of light you want. Dialing it down lets you conserve battery power, or set just the right mood for that romantic anniversary dinner. Crank it up when you want maximum illumination, or when you get old and your eyes turn to $#!^. Even at full power, the light puts out very little heat. In the event it does get too warm, onboard circuitry dims the light until it cools, and shuts it off if it doesn’t.

ridgid gen5x folding panel light

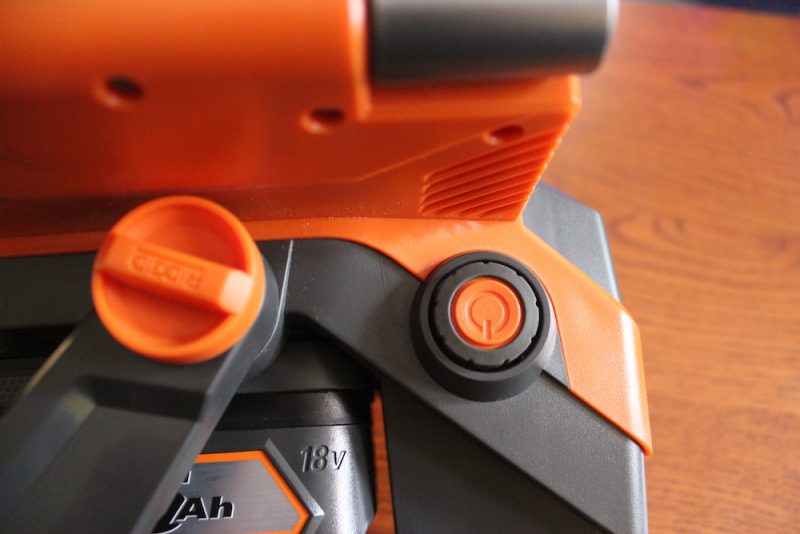

The power button, centered in the Ring of Brightness…

I saved one of the sweetest features of the Ridgid GEN5X Folding Panel Light for last: Its hybrid ability. When you’re working where there’s limited or no access to power, or in cramped quarters like an attic or crawl space, pop in any Ridgid 18V battery and flame on! When you do have power available, the light accepts a standard extension cord, so you can work all night long. Isn’t that great?!

ridgid gen5x folding panel light
When AC power is available, just slide out the battery…
ridgid gen5x folding panel light

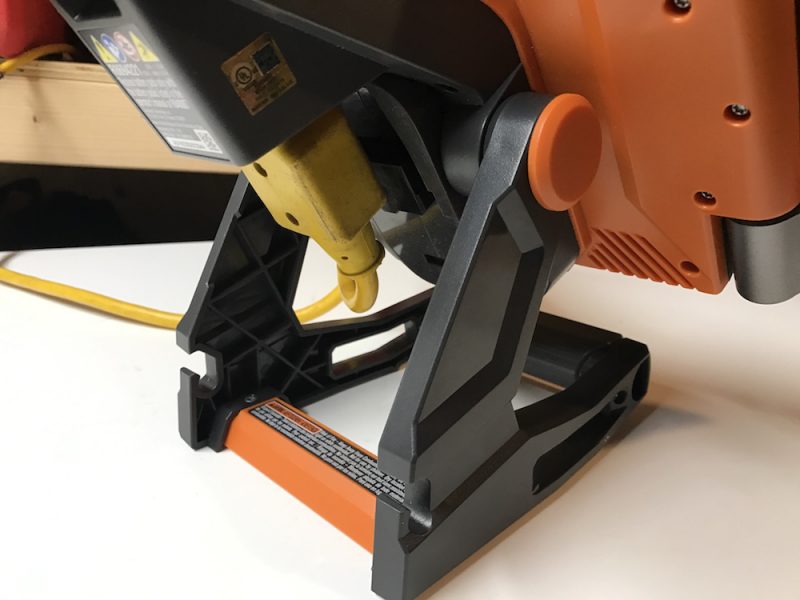

Plug in a standard extension cord, and fire it up.

The Ridgid GEN5X Folding Panel Light Assumes The Position

How can you position the Ridgid GEN5X Folding Panel Light? The engineers at Ridgid must have put in some OT coming up with options. Obviously, its base lets you place it on the floor, a workbench or table, or any surface stable enough to accommodate it. The bottom of the base also has a standard ¼ x 20 insert, designed to work with a tripod. Ridgid makes a beefy tripod that can accommodate up to three lights, or you can use any standard tripod. I tried it out on my photographic tripod, and it attached fine. My tripod is NOT very beefy, though, and the setup didn’t feel very stable. If I use it, I’ll have to be careful how it’s set up. Better yet, I think I’ll invest in the Ridgid tripod.

ridgid gen5x folding panel light

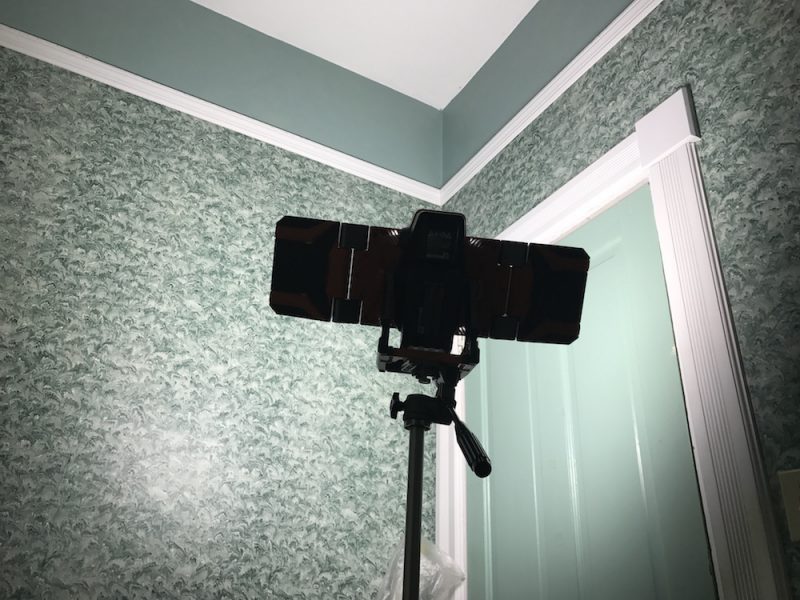

A tripod makes the Ridgid GEN5X Folding Panel Light even more versatile

Need more options, you say? On both sides of the rear of the base are cutout hooks, which could be used to hang the Ridgid GEN5X Folding Panel Light from a rope or cable, or a chain link fence. The manual doesn’t mention this, but the sides of the base also have slots in them, roughly 2” x ½”, so the light could be secured with a belt or a tie-down. Strap it on and do a little after-work downhill skiing!

The light also has keyhole slots on the back, which could be very handy if you use it regularly in the same area, say a garage or workshop. Just install a couple of nails or screws 2-7/8” apart, and slide the slots over the heads. The final official option is to slide the carrying handle over a piece of rebar or copper pipe. The handle is open on one end, closed on the other, so this would work either vertically or horizontally.

The Ridgid GEN5X Folding Panel Light Sheds Some Light

I recently got the opportunity to fire up the Ridgid GEN5X Folding Panel Light at a duplex we own. Half of it is rented, and the other half is undergoing a total do-over to remedy the previous tenants’ destructive rampage. The first task I undertook was to replace the very old sconce light in the hallway of the occupied unit, which had been the victim of a boisterous three-year-old (yes, that’s redundant) with a basketball. No biggie, and at least it was an accident!

Unfortunately, that had been the only light in the windowless hallway, so it was darker than a black cat in a vat of 30-weight in there. (Note: We did not verify this with an actual cat). We set the Ridgid GEN5X Folding Panel Light on the floor and angled it up. It not only provided excellent light for our work area, it lit up the whole hallway. I was tempted to just use one of the many hanging options to install the work light as the replacement, but I didn’t want to give it up. Anyhow, the light provided plenty of illumination to remove the old light, which had been installed roughly around the time of the Civil War, and get the new one put up.

ridgid gen5x folding panel light
Much better than working by flashlight!

After leaving recommendations about where not to play basketball, we headed upstairs. We had to remove the kitchen sink from its perch in the countertop, and my brother had been suckered into it graciously volunteered. Hey, he’s young and spry. Ish. It’s a miserable job, made more so if you can’t see what the heck you’re doing. We stuck the Ridgid GEN5X Folding Panel Light in the cabinet, and he had more than enough light to accomplish the unpleasant task, even with the output dialed down.

ridgid gen5x folding panel light
Good lighting makes even crappy jobs fun!

For the light’s next mission, we stuck it in the small, unlit pantry. The subfloor is concrete, with wooden sleepers and plywood above. It was pretty well rotted out, from decades of water leaks and spills that hadn’t been repaired, so we were pulling it all up (except the concrete – I’m not THAT ambitious) and replacing it. The Ridgid GEN5X Folding Panel Light made it a LOT easier to see just how scary it really was, and get the repairs completed. I also used the light in one of the bedrooms, where I had to replace a ceiling light fixture.

ridgid gen5x folding panel light
On second thought, turn the light back off…
ridgid gen5x folding panel light
Lighting up the ceiling fixture replacement

Final Illumination Ruminations

I was impressed with the Ridgid GEN5X Folding Panel Light. It seems ruggedly made, and I really like that it can be powered by battery or AC. With the light cranked up to full power, I got just under three hours of run time out of a 5.0 Ah battery. About half an hour before the battery went to sleep, it flashed a few times and then ran steadily, which would give you plenty of time to escape if you’re someplace that’s about to get very dark.

Ridgid claims the light is good for up to 14 hours on the lowest setting, but my results were considerably different – in a GOOD way. I turned the light on at 9:10 p.m. Thursday, and left it on continuously. It flashed a few times at 7:30 p.m. the next day, and it finally went out at 10:45 p.m. Friday. Unless my math is as poor as my eyesight, which is entirely possible, that’s a whopping 25 & ½ hours! Damn!

The Ridgid GEN5X Folding Panel Light cranks out a lot of light – Ridgid claims 2,500 lumens per panel – and the variety of ways it can be set up and mounted make it very versatile. With the addition of a tripod, the sky’s the limit. A seven foot sky, anyhow…

ridgid gen5x folding panel light
Lots of lumens…

The negatives for the light are very few and minor. While the overall design and usability is excellent, the one design flaw – for my fat fingers, anyhow – is the power button. Its location on the side of the body near the top means I’ve inadvertently turned it on almost much every time I picked up the light. Yes, I’m a slow learner. The only other improvement that comes to mind would be to enable the Ridgid GEN5X Folding Panel Light to charge the battery when it’s connected to AC. The downside to that is that the size of the light – and the price – would both have to increase.

The light will likely appeal to other users beyond contractors and DIYers. It would be great to have along on camping trips, or out in the back yard for some late-night grilling or LED volleyball. And I’m guessing anyone doing roadside service work at night would probably be very happy to have it along.

Still got qualms? In addition to its 90-day money-back guarantee, Ridgid has one of the beefiest warranties out there. It requires registering your tool within 90 days of purchase. Once you do, though, the tool has a lifetime warranty that covers parts and service. The Ridgid GEN5X Folding Panel Light is sold as a bare tool, and will work with any Ridgid 18V battery. Get one, and give your eyes – old or young – a little help.

ridgid gen5x folding panel light

Buy the Ridgid GEN5X Folding Panel Light at Home Depot for around $99:

Buy Now - via Home Depot

Photo of author

About Phil

Phil’s path to the pinnacle of success as HomeFixated’s Senior Writer was long and twisted. At various stages of his life, he worked as a framing carpenter, attended motorcycle mechanics school, served as an Army MP, did a hot and itchy stint installing insulation in Phoenix, owned and operated a small contracting firm doing residential renovations, and worked as an employee of a major airline (Motto: We’re not happy ‘til YOU’RE not happy). He is currently semi-retired, but continues to take on little projects, such as the total renovation of an old farmhouse. Yes, he is a slow learner. Future projects include a teardown restoration of his 1965 BMW motorcycle, and designing and building a kick-ass playhouse for his grandsons. Phil loves spending time outdoors, hanging out with family and friends, cool tools, and a cold IPA when beer o'clock rolls around.

Subscribe to our newsletter

Get access to free prizes, product sneak-peeks, reviews, how-to's and much more!

More Info | Email Privacy

10 thoughts on “Ridgid GEN5X Folding Panel Light Review – The Story Unfolds”

  1. Phil, really old thread i know but im trying to find out information on this light. Do you know what the color temperature is on the light? For example, 3500k ? I know the lumens (2500) but im trying to figure out if its a warm (yellow/orange) light or if its more cool (usually over 5000k)

    • Hey, Justin – I actually managed to dig out the user’s manual, but there were no specs on color temperature. Just from observing the light’s output, I’d say it’s in the cooler end of the spectrum, definitely a whiter light. Hope that helps. And the light is still working fine – we’re doing a lot of painting, and it helps light up the dark corners.

  2. Looks handy. Nice warranty but I don’t own any ridged tools. Unfortunately that causes the price to jump if I want portability.

    • True – if you’re not already on the Ridgid platform, and not planning to buy any in the near future, that does bump up the price a smidge…

  3. The design seems really smart and your review substantiates that. I don’t have rigid tools so hopefully ryobi comes out with something similar. Thanks
