If you’re like me, you have boxes of unorganized “treasures” littering your garage or shop. Your space may overflowth with seasonal decor, automotive parts, tools, knick-knacks, patty whacks, or a stockpile of rawhide bones for your dog. But all that stuff has to go somewhere. And the attic isn’t always an option; especially for heavy items. It’s time to go vertical! We’ll show you how to build a heavy duty shelving unit that can support an incredible amount of weight out of plywood and 2x4s. It’s easy and costs a lot less than comparable units at the home center.
Imagine Your-shelf With A More Organized Garage

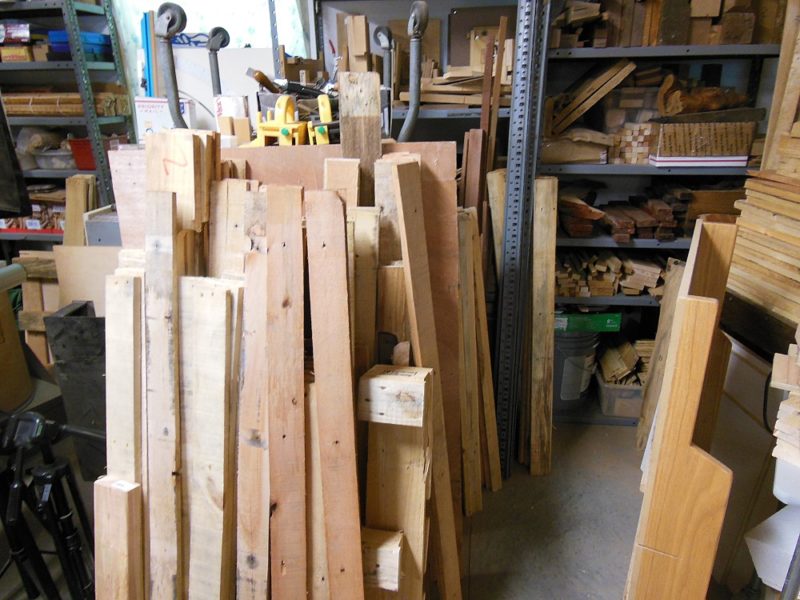

If you’re constantly shuffling things around, clearing paths through a chaotic “cluster f*#k”, you understand the struggle. In my case, a lot of that clutter is wood; it’s leaning against and blocking access to just about everything in my shop: the walls, my tools, even other piles of wood.

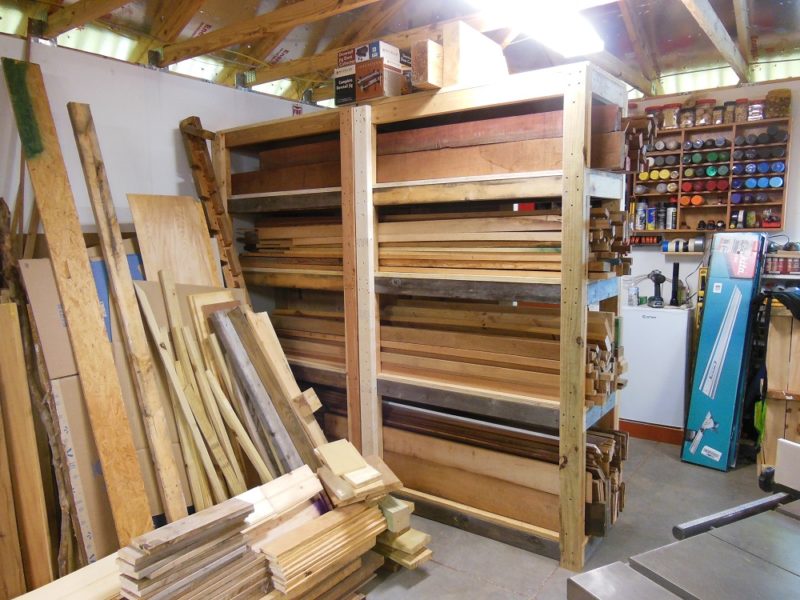

I have several (but not enough) cut-off bins that hold a lot of my shorter pieces, but I wanted a rack for the 6 to 8-foot pieces that are strewn everywhere. Wood gets very heavy in bulk, so any shelving must be capable of supporting huge loads with no worry of collapsing. Luckily, this isn’t my first rodeo.
I made two heavy duty shelving units like the ones I built for my old electronics shop, each from the equivalent of a sheet of 3/4” plywood and – if my math is right (pro tip: I suck at math, but I think I estimated this correctly) – about eleven 2x4s. They’re 7′ tall, with five 48” x 19-1/4” shelves. This project is easily adaptable to different dimensions, so size yours to suit your space and needs.
Being Shelvish – Building A Heavy Duty Shelving Unit
Construction starts with the individual shelves. Mine have five shelves: one on top, one on bottom, and three in between. Yours can have more or less, but you do need a top, a bottom and at least one somewhere in the middle to help prevent racking. Each shelf adds rigidity, so several in between is preferable (especially with a tall unit that’s not anchored to a wall).

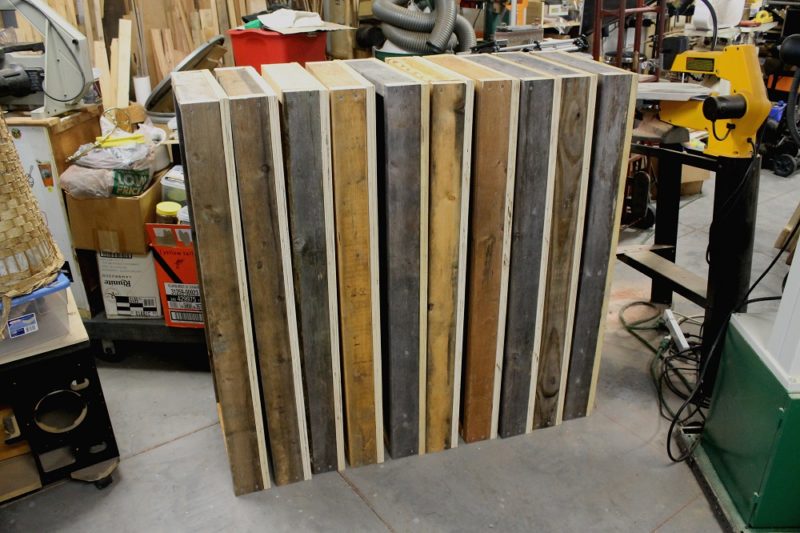

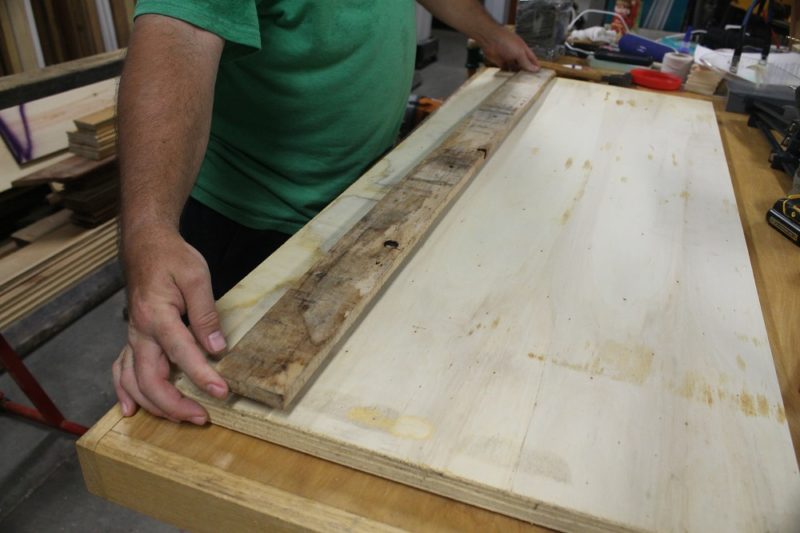

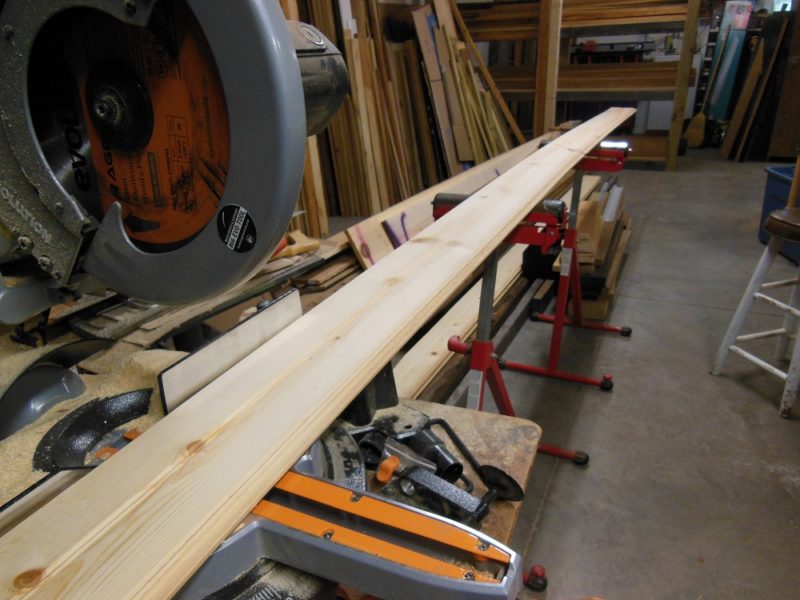

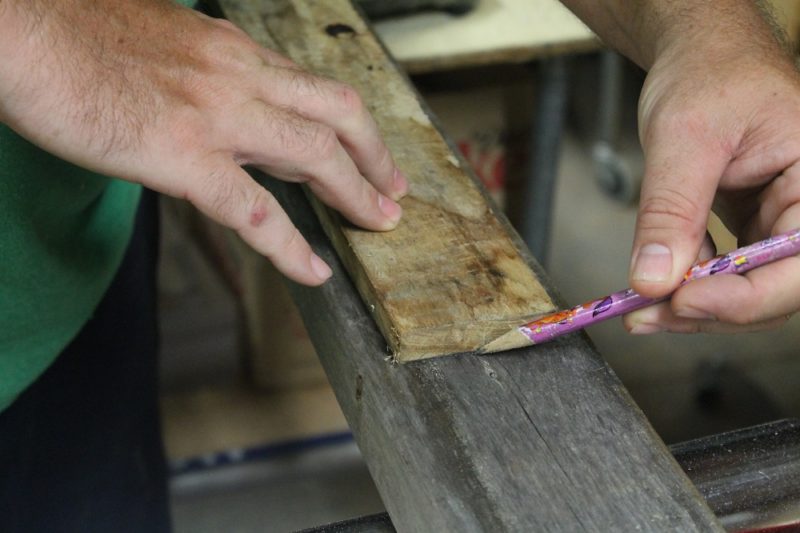

First, cut ¾” plywood to the desired shelf size. Mine are 48” wide by 19-1/4” deep. I went ahead and cut all ten (five for each unit) at the table saw. Next, for each shelf, make a simple frame that has the same outside dimensions as the plywood shelves. Cut two lengths of 2×4 lumber to match the long dimension. Then two shorter pieces to space out the ends. Larger shelves may require additional bracing.
If you plan to use the shelves for extra heavy items, consider limiting the length to 4 or 5 feet. Or adding extra bracing that spans the shorter 2×4’s. I want a total of 8′, so I’m making two 4′ shelf units that will be positioned end to end. A single unit eight feet long would be prone to shelf sag under high loads (unless you add intermediate vertical support posts) and would be very heavy and difficult to manhandle into position.
Assemble The Individual Shelves

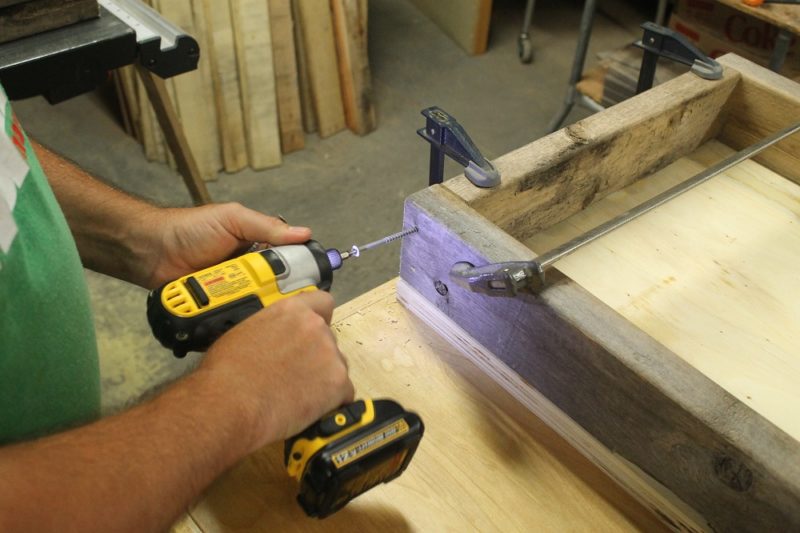

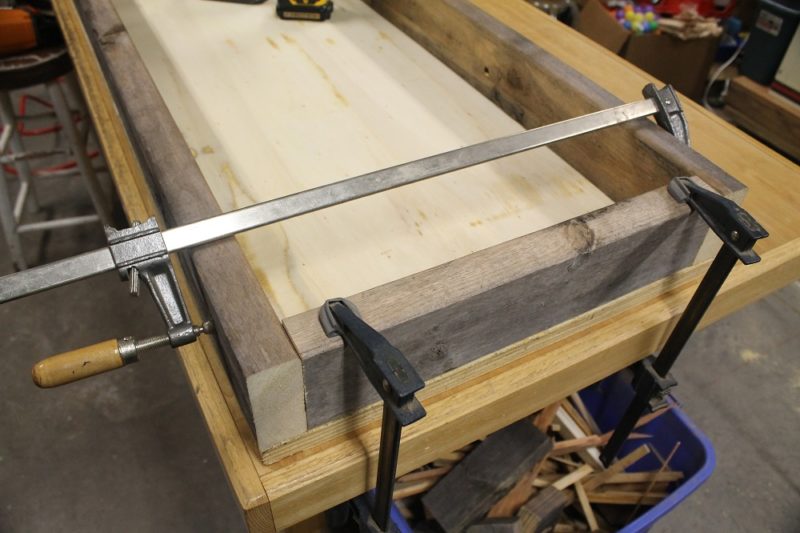

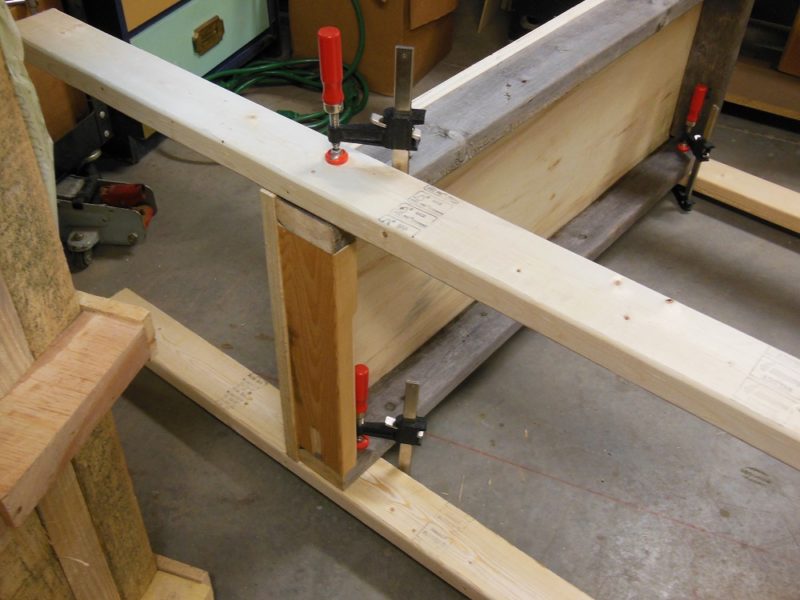

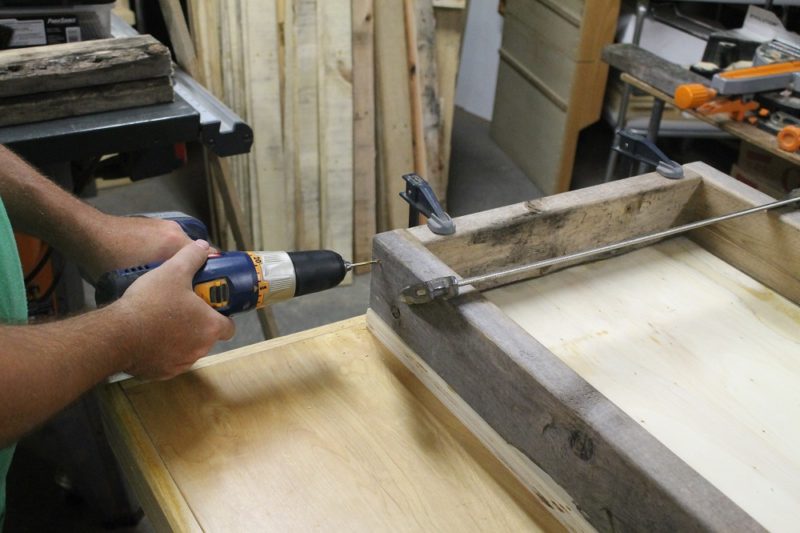

I dry fit each shelf upside-down and clamped the pieces firmly in place. Next, I drilled two pilot holes at each end and screwed them together with an impact driver.

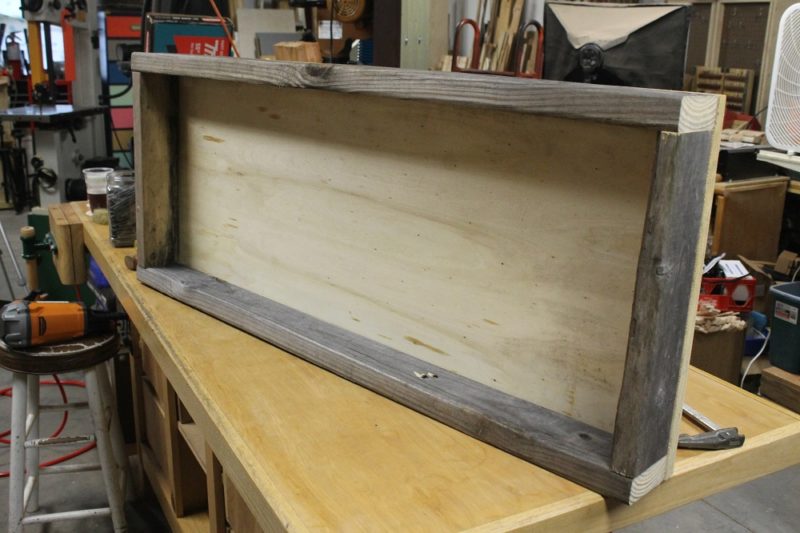

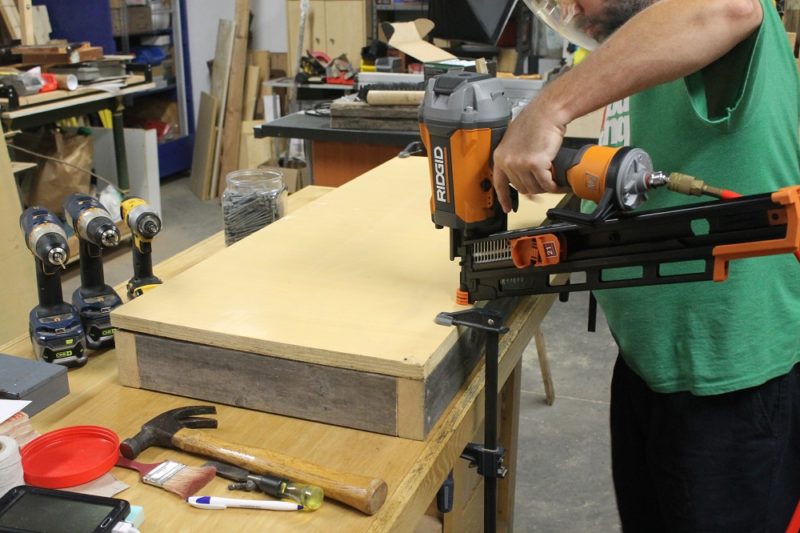

Finally, flip the assembly right-side up and attach the plywood to the frame. I used framing nails, as this step was done while reviewing the Ridgid R350RHF. But you could just as well use 1-1/2” to 2-1/2” screws.
Corner posts – Assembling The Heavy Duty Shelving Unit

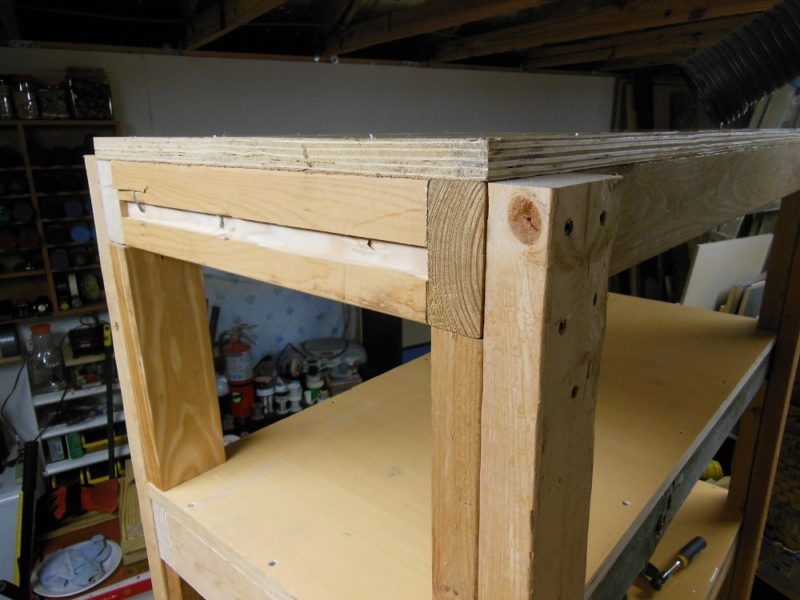

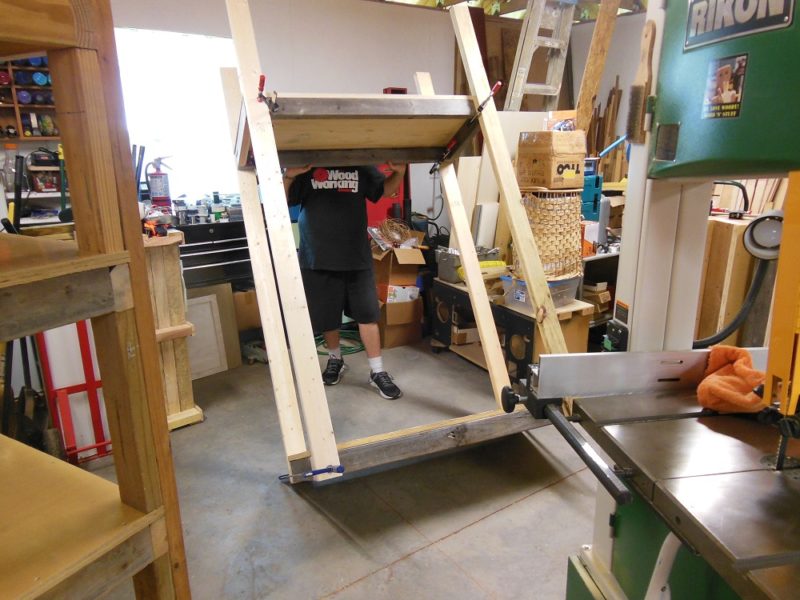

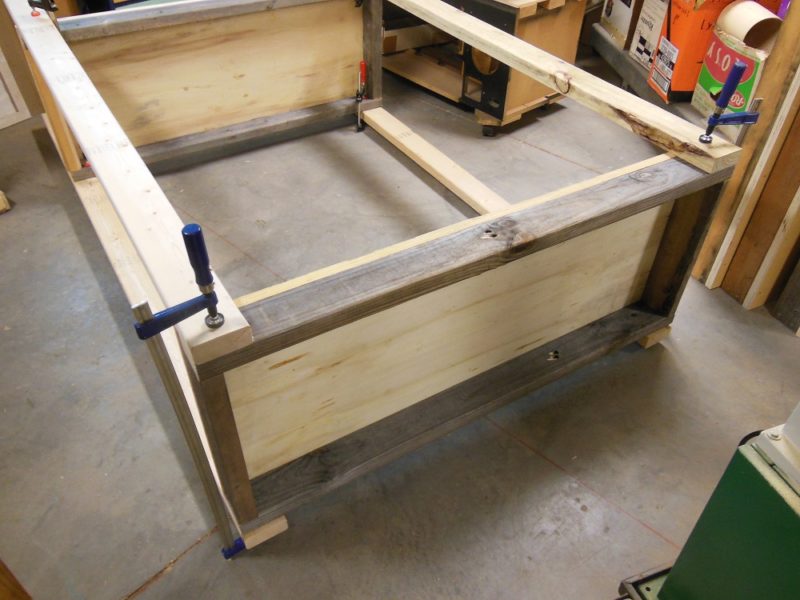

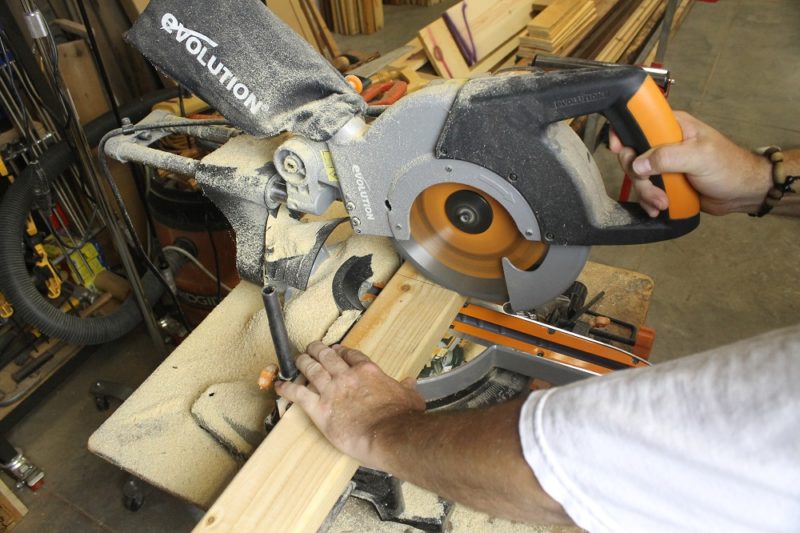

To assemble your heavy duty shelving unit, first cut the four corner posts to length. Then temporarily attach them to two shelves with clamps. My shop has an 8′ ceiling (Well, open rafters, but some year I will manage to put in a ceiling!), so I made my shelf units 7 feet tall.

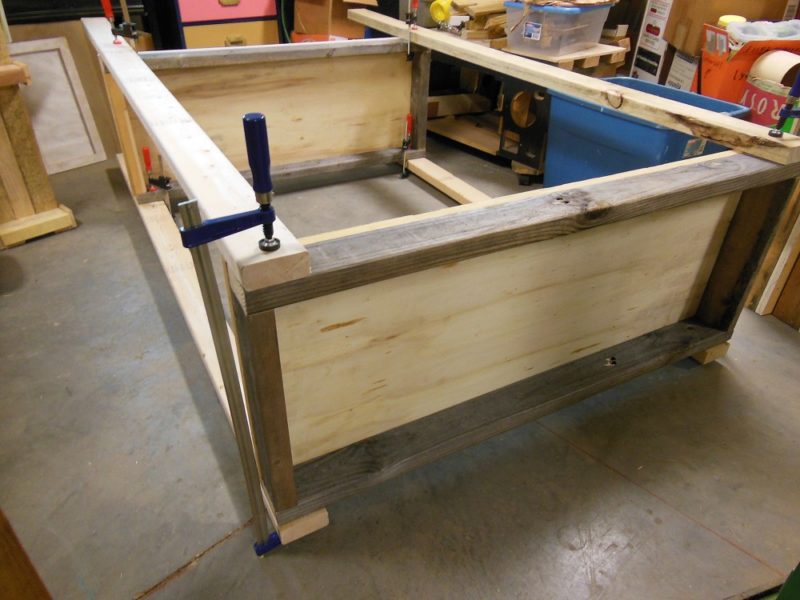

Locate one shelf at the “bottom” and another somewhere near the top. In this case, I have it a couple feet down from the top to make the unit more manageable when I go to stand it up. Square things up by eye the best you can while it’s still lying down. We’ll do the final alignment once it’s upright.
Make Those Posts Plumb, Bob!

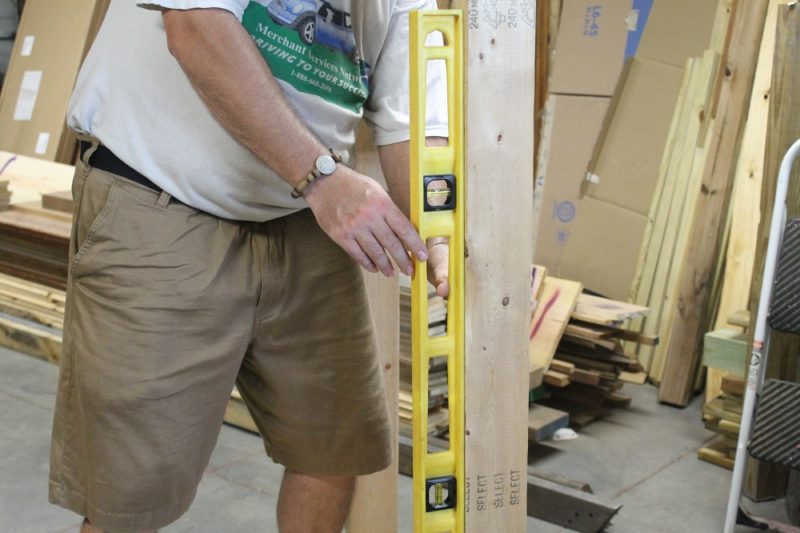

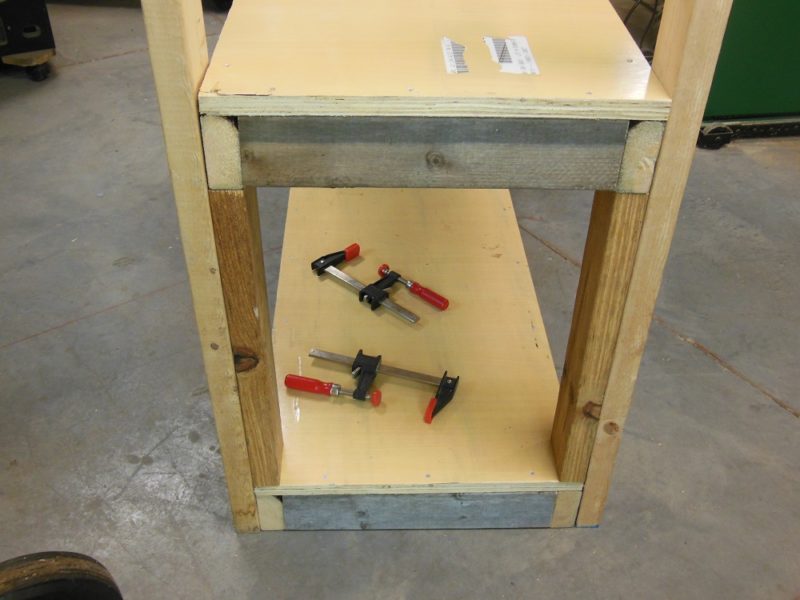

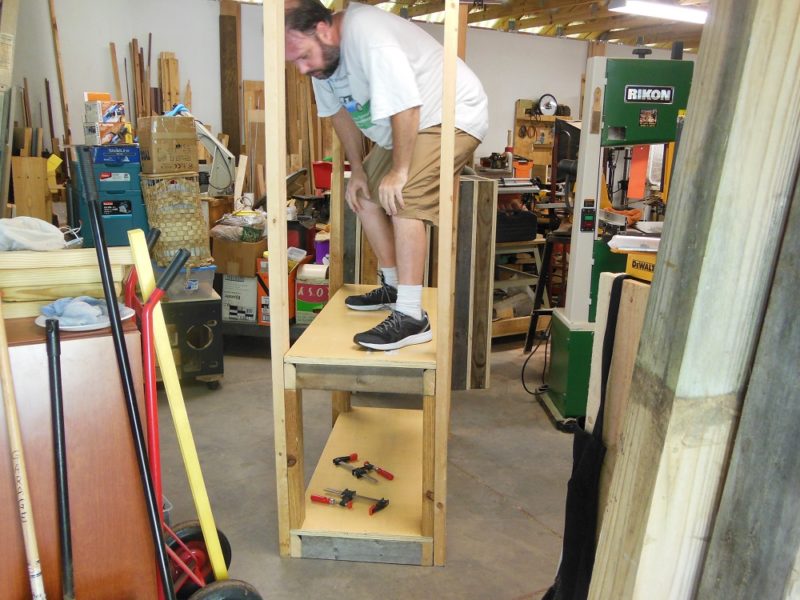

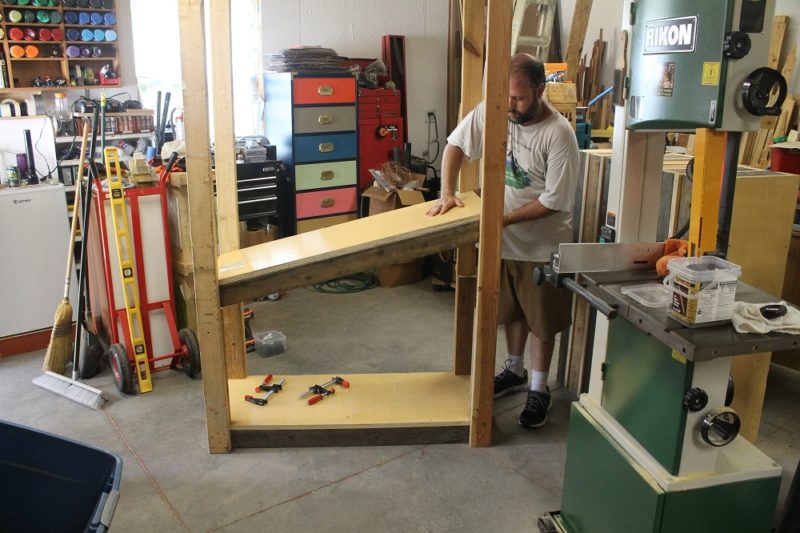

Now that the unit is standing, loosen one of the bottom clamps and step on that end of the bottom shelf. Make sure it’s seated firmly on the ground. Do the same to the other end. When you’re sure the bottom shelf is making full contact with the floor, re-tighten both clamps.

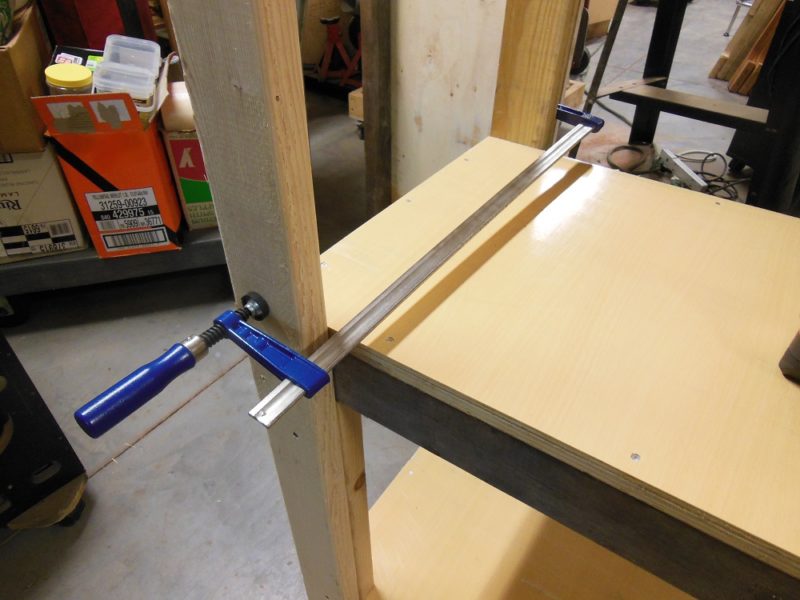

Decide which corner you want to begin with and loosen that side’s bottom clamp again. Also loosen the clamp holding that corner post to the upper shelf. While working on a corner post, the other three should remain tightly clamped to the top shelf. After you align a post, re-tighten the top clamp, secure the bottom with four screws, then move on to the next corner.

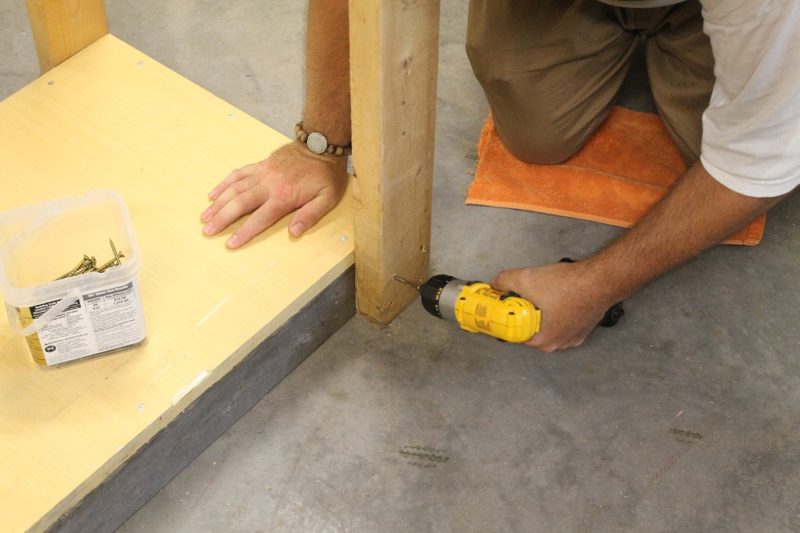

Work your way around the assembly until all four vertical posts are aligned to the corners, plumb and secured with screws – four at each corner – to the bottom shelf. Keep the upper shelf clamped in place for now. Also, be sure that the bottom shelf and ends of the four corner posts are all resting on the ground. That’s key to the “heavy duty” part of this heavy duty shelving unit.
Working Your Way Up The Heavy Duty Shelving Unit

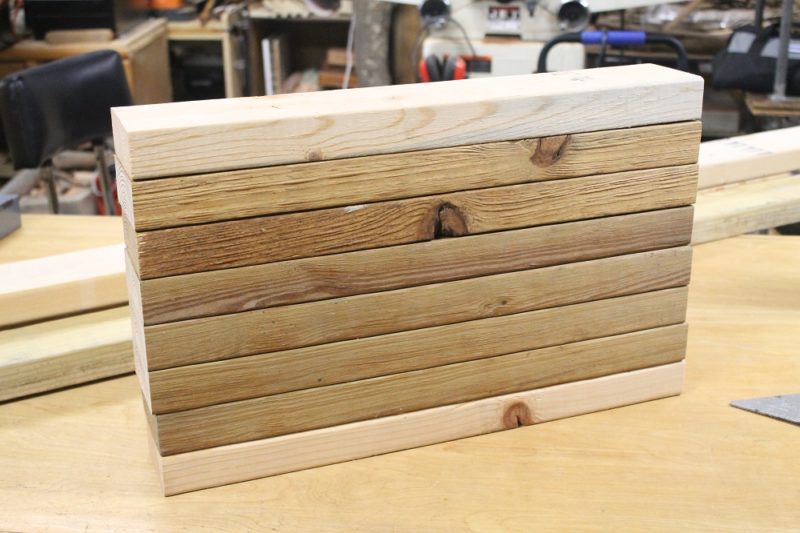

From here on, assembly is a piece of cake. A multi-tiered wooden cake. The remainder of the shelves will rest on 2×4 spacers. I had a general idea of the shelf placement I wanted, but I figured out the exact spacing as I went along. The following is a list of my spacer lengths. These are approximate measurements and can be altered to suit your needs:
* Bottom spacers: approx. 20”
* 2nd from bottom: approx. 17”
* 3rd from bottom: approx. 13-1/2”
* Top spacers: approx. 12”

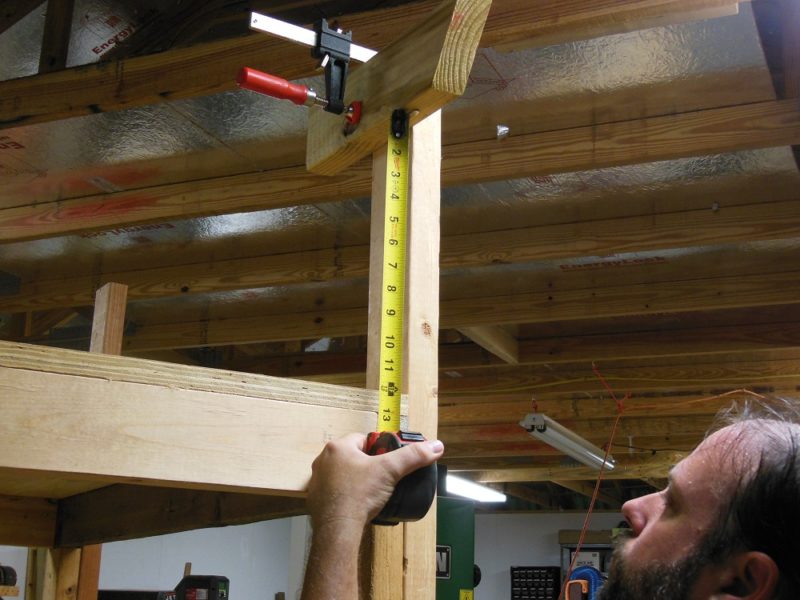

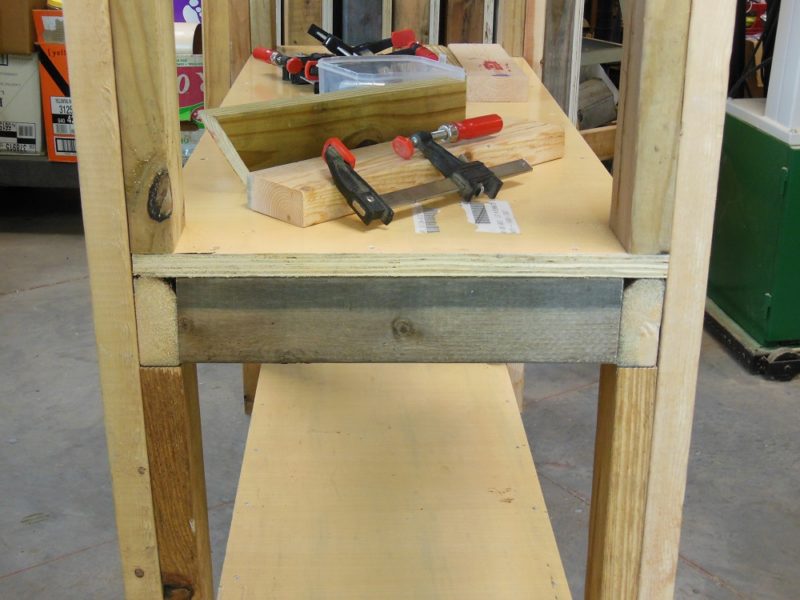

Attach a spacer to the inside face of each corner post, using one screw 2” – 3” from each end. Rest the end of the spacer on the shelf below – with no gap – then clamp in place before driving the screws.
Install The Remaining Shelves

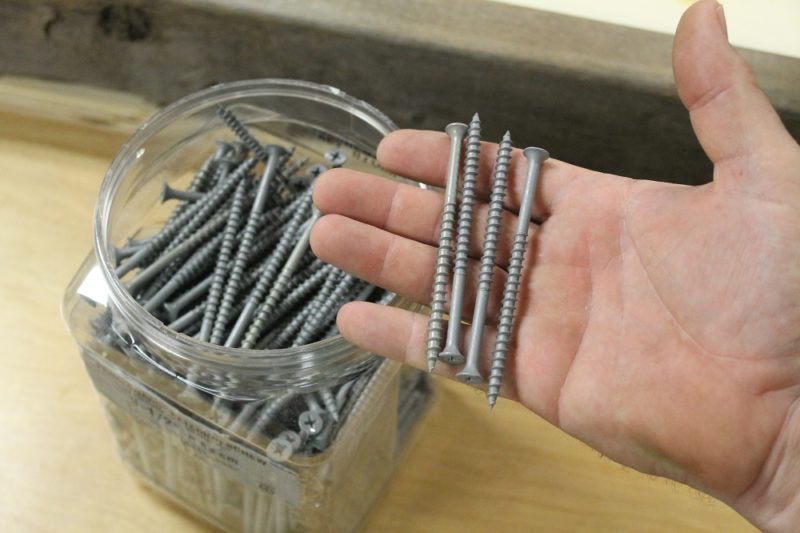

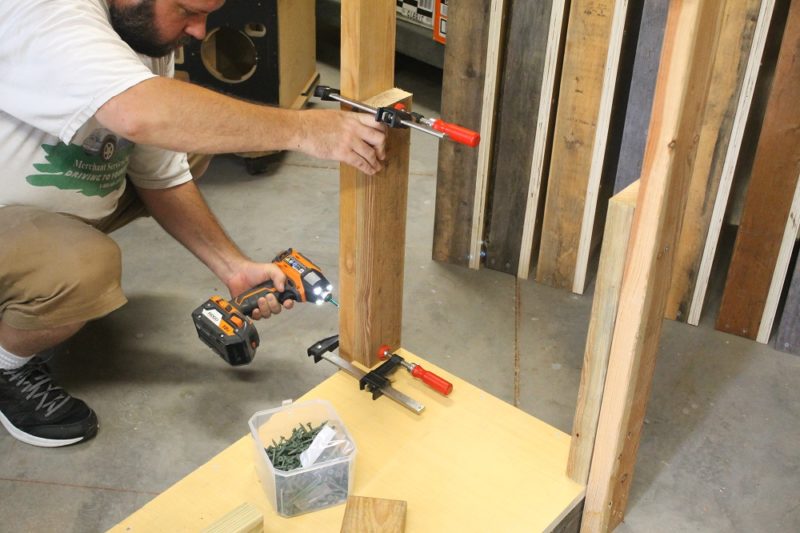

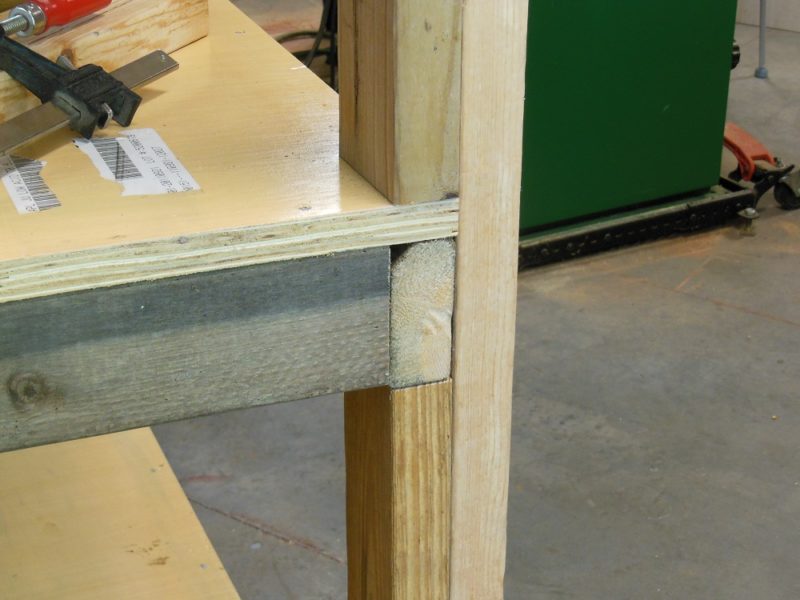

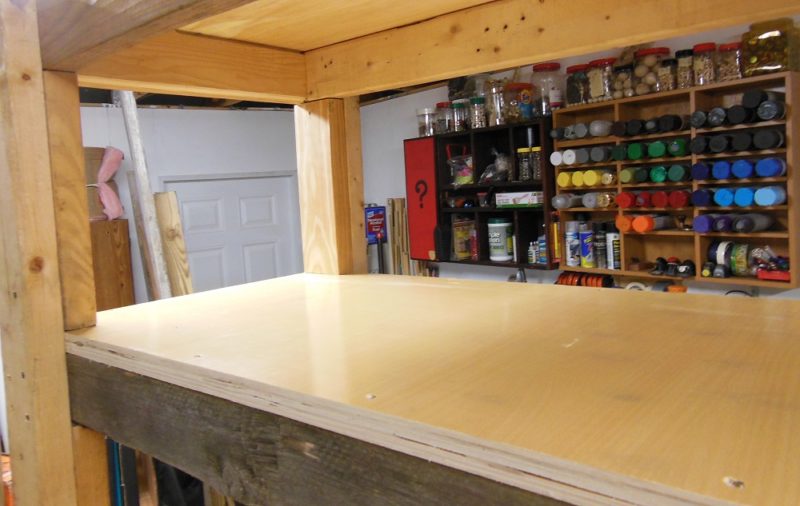

Set the next shelf on the four spacers and press the corners all the way down, so that the bottom of the shelf rests on the tops of the spacers. Use a clamp to pull the corner posts against the shelf. Secure each corner with four 2-1/2” x 9 screws, through the post and into the frame of the shelf.
One Heavy Duty Shelving Unit Coming Up!
From here, just alternate between spacers and shelves – screwing everything together as you go – until you reach the top. Once you have a couple shelves secured in place, you can unclamp the one up top. Be careful; don’t let it fall on your head!
Double Your Pleasure – Double Your Fun
Multiple units can be mated end to end. If you have any concerns about yours being unstable or getting misaligned (with respect to each other), you can screw or bolt them to each other or anchor it/them to a wall. But get them in place before joining or they might be a bear to shuffle around.

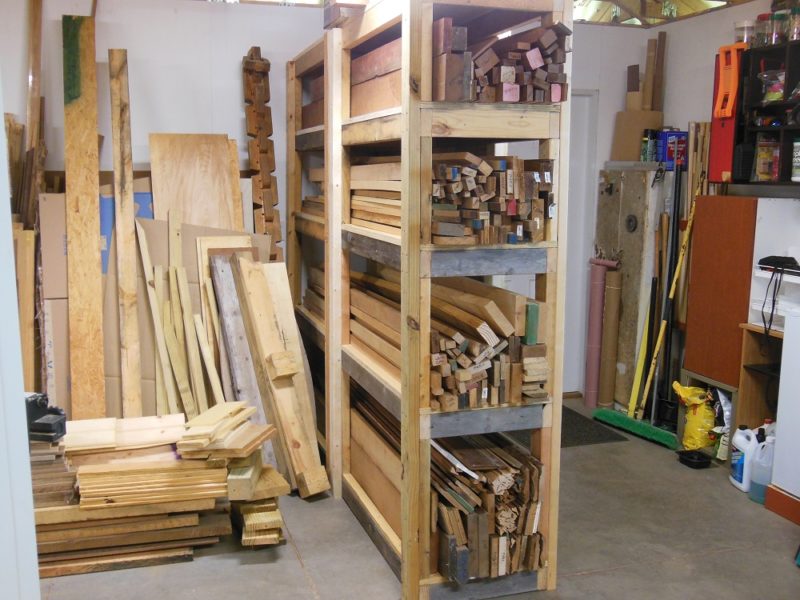

Frankly, the mass of these things is fairly substantial and they’re extremely rigid. Mine aren’t going anywhere I don’t want them to be. I maneuvered them to their final resting place – lightly tapping the bottom corners with a sledge hammer to eek them into end-to-end alignment with each other – and loaded them up. There was no need to fasten them together in this case.
What Makes These Heavy Duty Shelving Units “Heavy Duty” Shelving Units?
The secret to this project’s strength is the fact that all of the weight is transferred straight down to the floor. None of the load is actually carried by screws or nails because every load-bearing part is resting on a solid chain of wood, all the way down.
There’s virtually no way you’re going to load it enough to compress the 2×4’s. And it will take an insane amount of weight to make the shelves sag to any appreciable degree, especially if you add extra bracing, as needed. For your home, garage or workshop needs, I think you’ll find they really do live up to the hype.
Nails can be used to attach the plywood shelves to their frames. But to ensure high lateral strength, use only screws (or through bolts with washers, lock washers and nuts) for everything else. Especially when fastening the corner posts to the shelves. That way, the vertical uprights can never bow outward and allow a shelf to drop.
A Little Bling For My Shelves – The Optional Accessorizing Of A Top Shelf Storage Unit

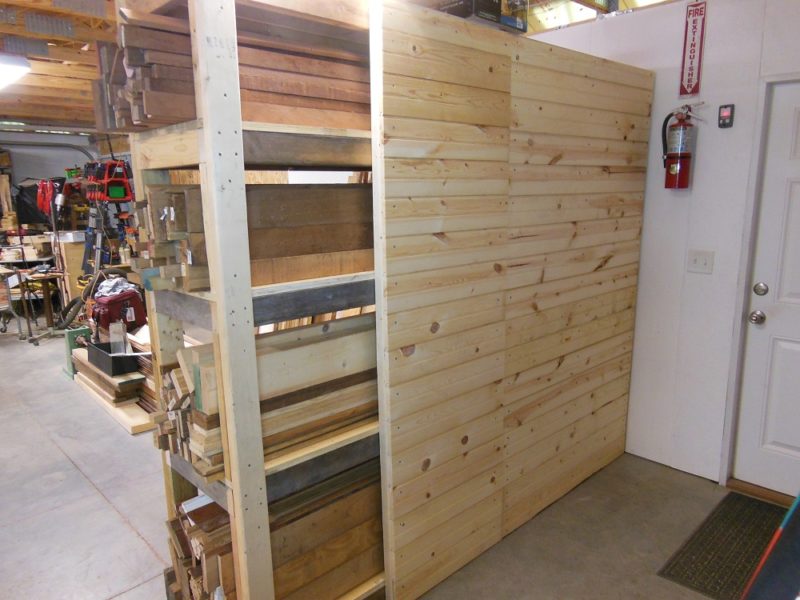

I’ve been planning to build a partition wall to hang shelving for paints and other things. I also wanted some heavy duty shelving to store a bunch of my 8′ pieces of wood so I could regain a chunk of wasted wall space.

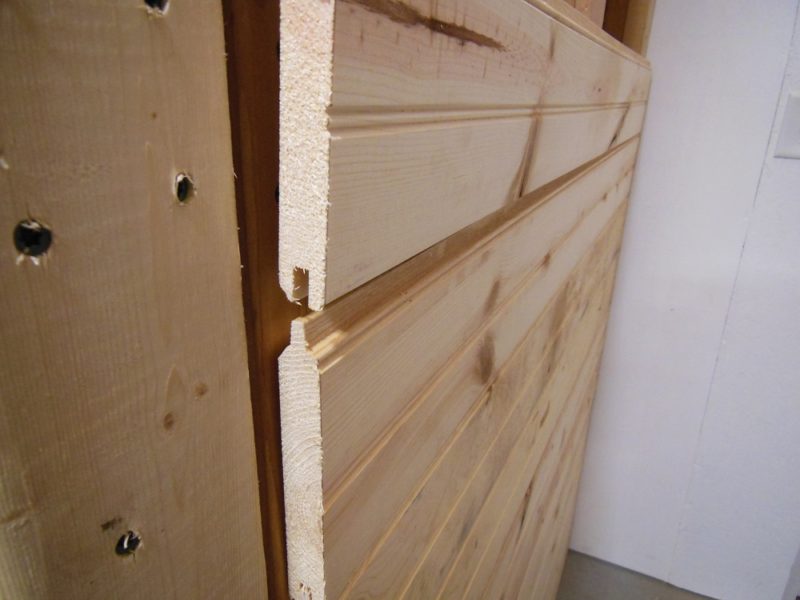

This project allowed me to kill both birds with one stone. I positioned the shelving units where I wanted the wall to be then used pine tongue and groove board to face most of one side, giving me the wall I was longing for.
Is It Worth Building Your Own Heavy Duty Shelving Units?
I made these two shelf units with mostly reclaimed wood and scraps and hardware left over from other projects. So I only had to purchase three or four 2×4’s for the entire project. But, realistically, I’d expect to spend around $100 per unit for the wood. Plus the price of some 8d nails and a couple pounds of screws. Compared to metal shelving of comparable size and strength, it’s actually a really good deal. And you get to customize it to perfectly fit the available space.
And that’s all there is to it! If you need vertical storage for your garage or workshop and you’re sick of those flimsy plastic or wire shelf units that sag and twist with the slightest load, try building these heavy duty shelving units and you’ll never have that problem again.
