How To Build A Handrail For Your Porch Stairs – $60 And Three Hours To Safer Stairs!

As an Amazon Associate we earn from qualifying purchases (more).

build a railing

I love our porch. In the summer, we spend a lot of evenings relaxing there with friends and appropriate beverages. Winter is a different story; we know the porch is still out there somewhere, under all that white stuff, but we don’t sit out much in March. If you’re a fellow resident of the Snow Belt, you spend a lot of quality time dealing with snow and ice. At some point, you’ll need to get from your snow and ice-covered porch to your snow and ice-covered sidewalk, or vice-versa. How do you get there? Why, by using the snow and ice-covered steps, of course! If you’d like to make that trip without doing it on your snow and ice-covered butt, follow along with us as we show you how to build a railing to cling on to, all for less than your emergency room co-pay would be!

Even if you don’t live in the frozen hinterlands, if you have steps leading up to your porch, a handrail is a necessity for safety. Even if you’re young and spry, like I was several years back, your mother-in-law, or the 87-year-old Jehovah’s Witness delivering your latest Watchtower magazine, may not be. And if they do a face plant off your steps, guess who’s gonna get sued? That would be YOU – the negligent homeowner. Local building codes vary, but pretty much anywhere, if you have a deck or porch 30” or more above ground level (lower in some areas), a railing is required, as is a handrail along the stairs. The average height for the railing is usually 34-38” high, off the nose of the tread. Before you start putting yours together, check with your local building inspector; you might also need a permit.

build a railing

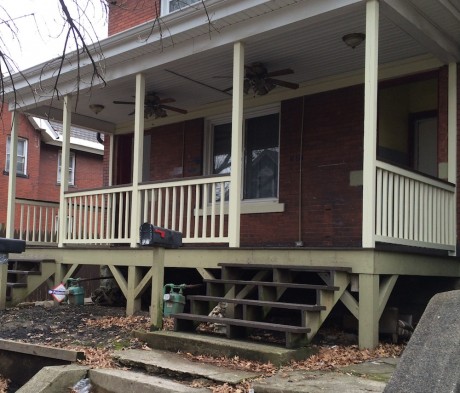

The official Before shot – perilously handrail free

Fear not, though; just because you have to build a railing doesn’t mean you have to spend a fortune. We’ll show you how to put together a sturdy, mother-in-law friendly railing (and hey – just because she made it onto the porch, doesn’t mean you have to let her in!), quickly and in a low-budget fashion. All you need is a few basic tools and very basic carpentry skills, and you’ll be stepping up, and down, with minimal butt to stair contact!

Ready To Build A Railing? Step Right Up!

We recently bought a duplex, which we’ll be using as a rental property. The building itself is pretty solid, although there are a few projects on the to-do list – check back to see some of them. The building has a porch across the front, and the porch is in decent shape; it appears to have been re-built not long ago. There are two sets of stairs, one for each unit, and the stairs are also in good shape, aside from being covered with snow and ice. Neither, however, had a railing. Being averse to broken limbs and lawsuits, fixing that became Job One on the to-do list.

build a railing

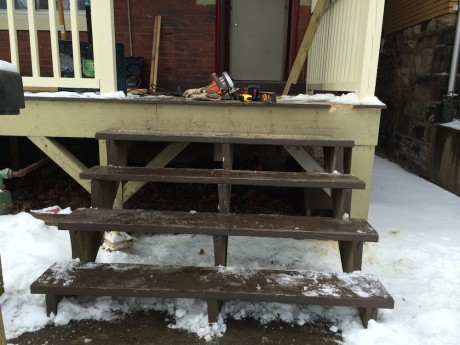

Hey—there were stairs under that 2″ of ice and snow!

There are several railing options available at most home centers, including turned and plain spindles, various post styles in pressure treated wood or vinyl, even wrought iron railings – let your budget and building style be your guide. Our mission was to build a railing that was sturdy and inexpensive, yet a thing of beauty to behold. We wanted to match the existing porch railing; it’s a pretty simple design, with plain 2X2” spindles.

Here’s a list of the materials we used:

1 2x4x10’ pressure treated, to use as rails  $5

1 6’ rail cap, pressure treated  $5

7 2X2” balusters, pressure treated  $7

2 4×4” fancy posts, pressure treated  $20

1 lb.  2-½” exterior screws  $10

4 ½” x 4” carriage bolts, nuts, washers, galvanized  $10

Total material cost:  $57

Tools needed

Circular saw and/or hand saw


Wrench, adjustable or socket, to tighten nuts on carriage bolts

Tape measure


Drill with ½” drill bit and Phillips driver bit

Oscillating multitool or jigsaw, to notch stair tread or ends of porch flooring

Snow shovel and ice chipper, depending on your location

Some Assembly Required – But Not Much!

The posts we used were 4X4” (actual width 3.25”) and 48” long. To better withstand the snow belt weather, they’re made of pressure treated wood. The bottom was notched about 6” up, allowing the post to rest partially on the step, with the inside face of the post tight up against the stair stringer. We installed the first post on the top step, flush with the front edge of the porch trim. To do so, we had to cut two notches: one in the lip of the floor, where it hung over the front edge of the porch by about an inch, and one in the stair tread, where it stuck out beyond the edge of the stringer by about 1-½”. To make these cuts, I used my oscillating multitool, but a jig saw or Sawzall would work fine too.

build a railing

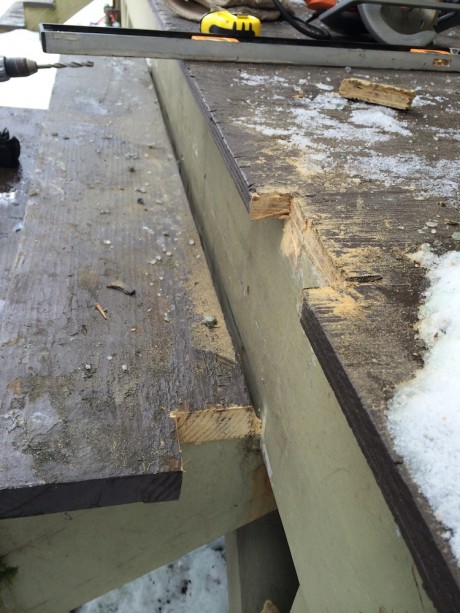

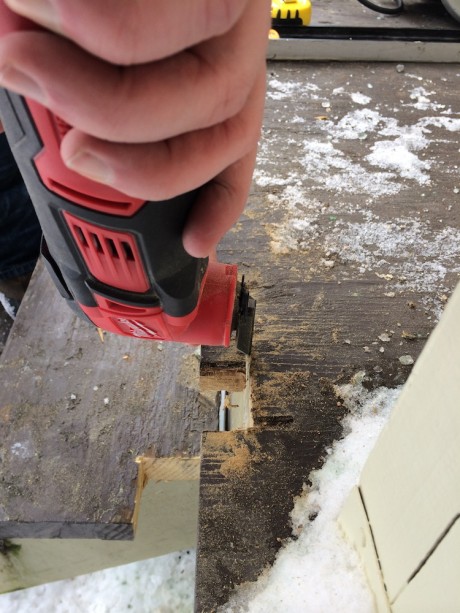

A little trimming is needed on the floorboards and step
build a railing

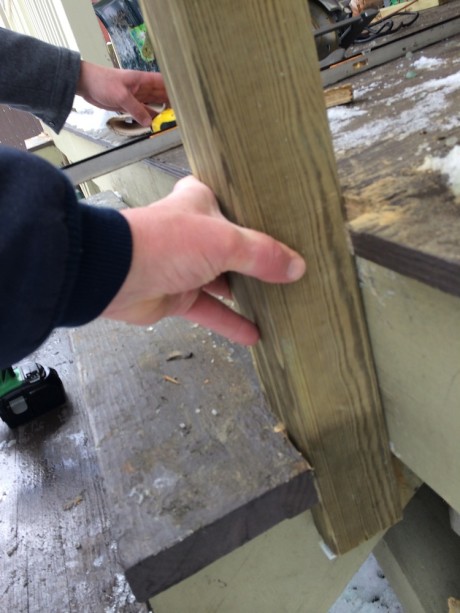

Notches allow the post to sit tight to the stringer and header

Once the cuts were made, we positioned the post in the notch, and held the level on it to check for plumb. It was right on for the front-to-back plane, but leaning out just a tad for the side-to-side. While holding the post in place, we drilled two ½” holes, then ran the carriage bolts through, slid the washers on, and started the nuts. To correct the lean, when we tightened the bolts, we just added a shim between the bottom of the post and the side of the stringer, and it straightened it out nicely.

build a railing
We set the top post in place, and leveled it up
build a railing

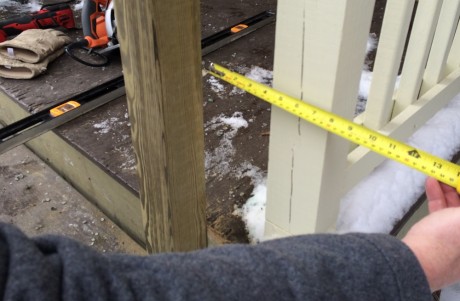

Code says no gaps over 4″–we made it!
build a railing

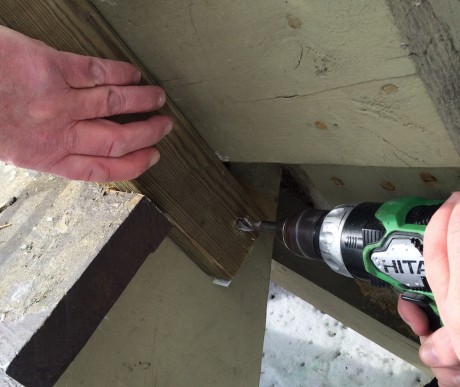

Two 1/2″ diameter holes are needed for the carriage bolts
build a railing
Use galvanized hardware and pressure-treated wood for durability

After snugging up the nuts, we notched out the bottom stair tread, drilled our holes, and bolted the bottom post into position. To give the posts a bit of added strength, we ran a few exterior-grade screws through the posts and into the stair tread and the face of the porch, toenailing them in.

build a railing

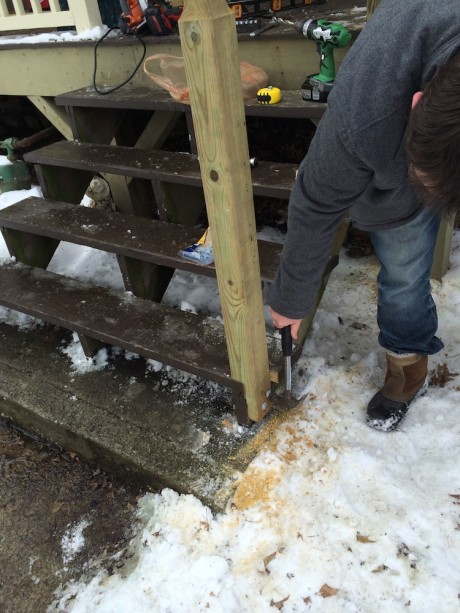

Repeat the process with the bottom post

Then it was on to the next step in our quest to build a railing: installing the rails. We measured up from the nose of the tread to determine the height we needed to the top of the rail (36”), and marked the location on both posts. Then we just held the 10’ 2X4 against the edge of the posts, lined up with our marks, and marked the angle to cut on each end. We made the cuts with the circular saw, then added brackets to each end, attaching them with joist hangar nails This allows for an easy, strong attachment between rail and post. We made the lower rail the same way, then held the rails to our marks, centered them on the posts, and attached them to the posts using the same type of brackets.

build a railing

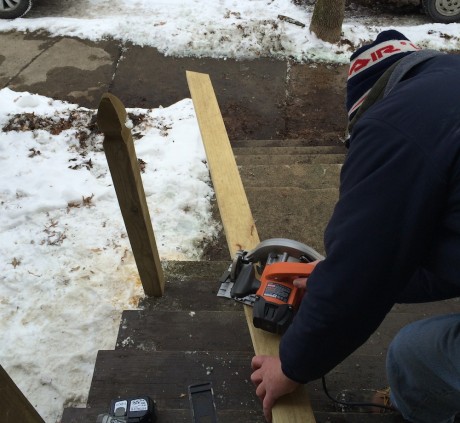

Cut the 2X4 at an angle to fit between the posts
build a railing

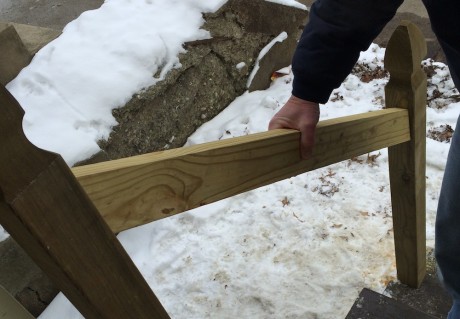

A perfect fit, naturally
build a railing

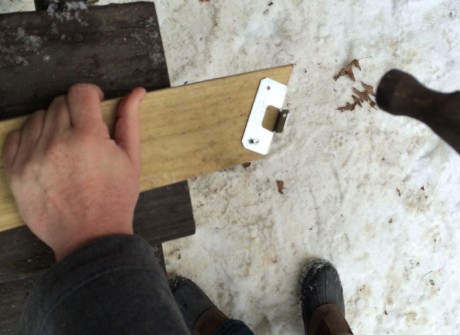

Brackets make an easy, secure connection
build a railing

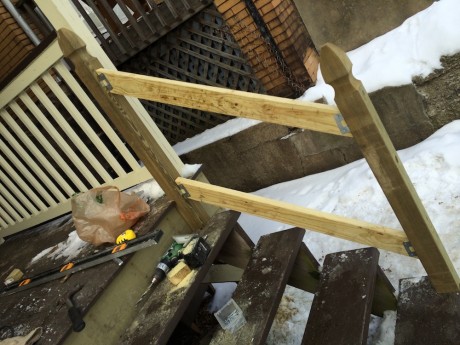

Side rails in

Next, we took our rail cap, and held it alongside the posts just above the top rail, where it was to be installed. We marked the angle on the top and bottom where it would meet the post, set the blade on the circular saw to match, and cut it to length. Then it was just a matter of setting it on top of the rail and attaching it through the top into the support rail with six exterior-grade screws. We bought brown ones, which blend in with the wood pretty well.

To finish up, we attached the 2X2 balusters. The building code requires no more than a 4” gap between them, so we measured 4” from each end and installed the end balusters first. To try and get the spacing as even as possible, we then split the difference for the remaining balusters, and the gap ended up being about 3-¼” between all of the balusters. The difference isn’t noticeable unless you’re really looking for it – and we aren’t. We screwed the tops of all of them in first, then went back with the level and plumbed them up before screwing the bottoms in.

build a railing

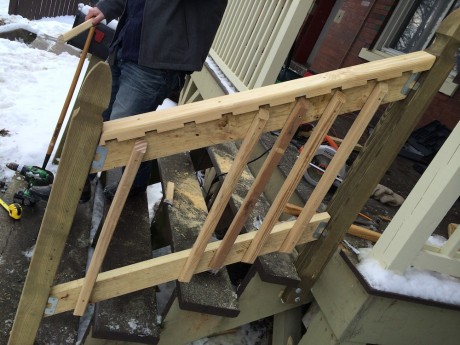

Space out the spindles, screw in the tops. Next step is to plumb ’em up.
build a railing

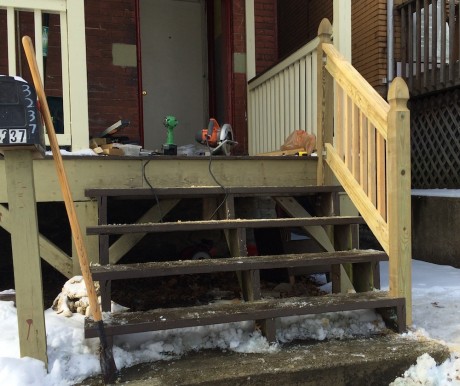

Spindles all in and plumbed

And that’s it! Even on a cold, crappy winter day, it took us less than three hours to build a railing that’s sturdy and (moderately) attractive. After the weather breaks, we’ll go back and add some finishing touches. We want to add some wood filler to the screw holes, so it looks better, and after the wood has had a chance to dry out, we’ll paint the whole thing to match the existing porch railing. In the meantime, though, regardless of whether the steps are covered with ice and snow, or the porch-sitters have had one too many relaxing beverages, it will be a whole lot easier, and safer, for anyone who has to clamber up and down those stairs.

build a railing

Photo of author

About Phil

Phil’s path to the pinnacle of success as HomeFixated’s Senior Writer was long and twisted. At various stages of his life, he worked as a framing carpenter, attended motorcycle mechanics school, served as an Army MP, did a hot and itchy stint installing insulation in Phoenix, owned and operated a small contracting firm doing residential renovations, and worked as an employee of a major airline (Motto: We’re not happy ‘til YOU’RE not happy). He is currently semi-retired, but continues to take on little projects, such as the total renovation of an old farmhouse. Yes, he is a slow learner. Future projects include a teardown restoration of his 1965 BMW motorcycle, and designing and building a kick-ass playhouse for his grandsons. Phil loves spending time outdoors, hanging out with family and friends, cool tools, and a cold IPA when beer o'clock rolls around.

Subscribe to our newsletter

Get access to free prizes, product sneak-peeks, reviews, how-to's and much more!

More Info | Email Privacy

12 thoughts on “How To Build A Handrail For Your Porch Stairs – $60 And Three Hours To Safer Stairs!”

    • Mostly in the name of expedience, and because the intent was to eventually fix the cracked and heaved concrete that made up much of the lower stairs and walkway. Even though bolting the post to the riser made for a pretty stable connection, securing the post to the concrete with a bracket would definitely make the connection more solid. Thanks for your comment!

    • I’m not sure what those particular connectors are called, John, but they’re made by the Simpson Strong-Tie company. I got them at the local Home Depot. The company makes hundreds of different connectors, some of which are “Architectural” design, which means they are designed to be left exposed. Here’s their site, if you care to take a look.

      • It is a Rigid Tie Connector Model RTR. I just spent a few weeks looking for it! Thanks for the step-by-step, I will be adding a rail this weekend after re-building my stairs.

        • Thanks for the info, Jen. What a fun way to spend the holiday weekend! I’ll be mixing up about 25 bags of concrete to make a fire pit – wanna trade?

  1. Thank you for your article. I’ve never built stairs before but the way you put the instructions into easy to understand terms as well as all the detailed pictures helped a ton! We were replacing a medium sized entire front porch. We followed the same basic pattern as the old porch but needed to bring it up to code, especially the stairs. The old stairs had already fallen off once since they were only connected to the front of the porch with a few toenailed screws. The landlord reattatched them but the first step down was nearly 12″ inches with other three between 9″-10″ besides being incredibly wobbly. After three years of the landlord saying he was going to replace the whole porch we finally offered to do it ourselves if he paid for all the wood and supplies. Now it’s bigger, super sturdy and with your instructions the stairs are perfect. We did the rail a tad different only because we didn’t have the right kind of saw to notch out the steps. But it’s 100% better. We too are going to add some finishing touches including a nice piece of cedar board tucked under the last step to hold back loose dirt and water from heavy rain in an attempt to keep our kids and dogs from tracking it inside since we live in Michigan so the weather and conditions can change from hour to hour.
    Lastly I just wanted to say I enjoyed the way you kept you article upbeat and fun! So thanks again for taking the time to put these instructions up so novices like us can be proud now of the beautiful and now safe porch, stairs and railing that we can say we built!!

    • Glad the article was helpful, Stephanie. Good for you for taking on a big project like a porch replacement – that’s quite a DIY project! Too bad your landlord kept blowing you off, but unfortunately that’s not uncommon. Now your family will be safe, you can take pride in a job well done, and you’ve set a great example for your kids, by your willingness to jump in and tackle something like that. Congratulations!
